For years, the D-sub connector has become the standard solution for dependable multipin connection in electronic and industrial uses. These strong connectors offer a stable and secure link to systems of legacy computers, industrial equipment, or specialized equipment that will endure. But what is exactly 15pin D-sub and how come it's still remain mainstream?
Knowledge of the D-sub Connector

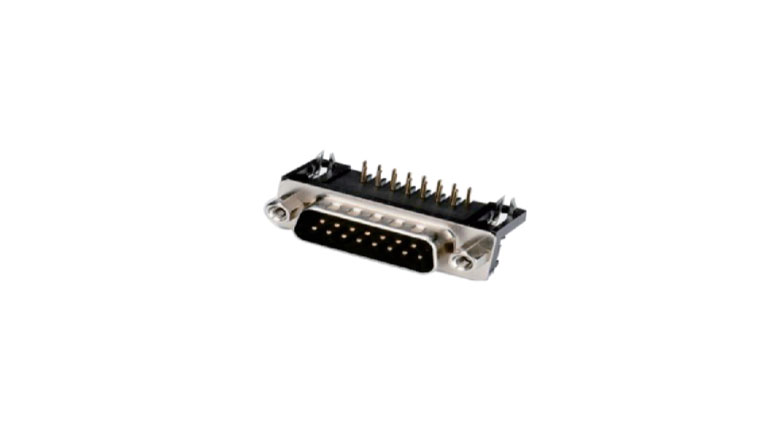

With its distinctive Dshaped metal shield guaranteeing correct alignment and shielding the pins from electromagnetic interference, the D-subminiature (or D sub) derives its name. Sometimes known as DB15, the 15pin variant is among the most often used arrangements. The DB15 has more contacts than smaller D-subs (such the 9pin model), so it is great for uses calling extra power or signal lines.
With its distinctive Dshaped metal shield guaranteeing correct alignment and shielding the pins from electromagnetic interference, the D-subminiature (or D sub) derives its name. Sometimes known as DB15, the 15pin variant is among the most often used arrangements. The DB15 has more contacts than smaller D-subs (such the 9pin model), so it is great for uses calling extra power or signal lines.
Two main gender types of these connectors—male (with pins) and female (with sockets)—are available several standard and highdensity arrangements.
The 15pin version is everywhere:
1.(for projectors and older monitors) VGA connections.
2.In industrial systems, serial and parallel communication.
3.game ports, (~those with legacy joystick connections)
Technical elements
Goldplated contacts for corrosion resistance, a strong metal shell, and a secure fastening device (usually screws or latches) are components of a wellmade Dsub connector. The DB15 generally conforms to these main characteristics:
1.Contact Pitch: approximately 2.77 mm (typical density)
2.Sheel material: Zinc alloy, steel with nickel plating
~5A per contact (change by maker)
3.Voltage Rating: Maximum: 250V
Their longevity is among the major benefits of these connectors. Where dust, vibration, and frequent mating cycles are a concern, a strong D-sub can withstand such conditions—thereby making them ideal for rough applications like outdoor instrumentation or factory floors rather than weak plastic replacements.
