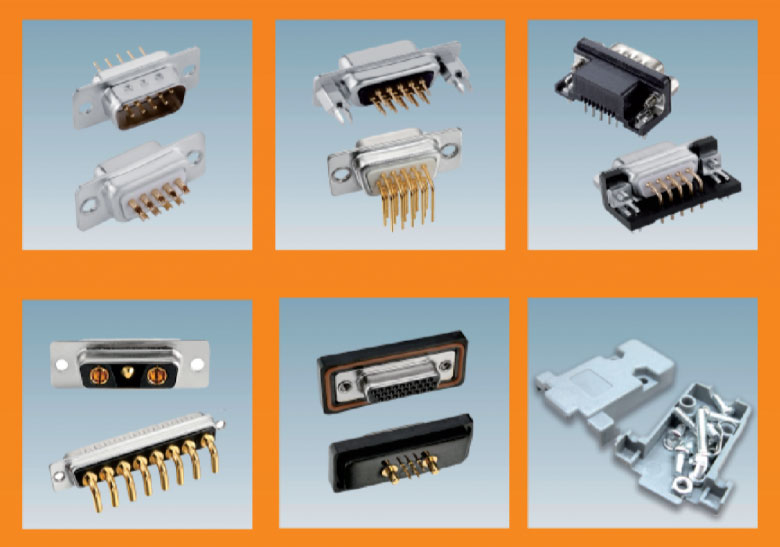

Why the Industries and Electronics Industries Still Find the D-Sub Connector a Dependable Choice?
Since its debut in the 1950s, the D-sub connector (short for D subminiature connector) has been a mainstay in military, industrial control, and communication uses. Honestly, you have likely noticed its traditional trapezoidal shape in all from computer serial ports to PLC gear and even fighter jet avionics—this connector is noted for its high pin density, mechanical stability, and noise resistance.
Firsttime users, however, continuously ask: "How many pins on a D-sub connector does it have?" There is no clear answer. Standard setups run from 9 to 78 pins (e.g., DB9, DB25), and as a 15year experienced company, we also provide custom solutions—one of the main benefits of D-sub technology.
Breaking Down D-Sub Connector Specifications
From normal to really extreme, pin counts & sizes run
Their model names determine D-sub pin counts exactly:
DB9 (9-pin):The RS232 serial communication goto is DB9 (9pin).
DB15 (15-pin):DB15 (15pin): Regular VGA video interface standard.
DB25 (25-pin):DB25 (25pin): Printer ports from the past & commercial controls
High-Density (HD) Series:HighDensity (HD) with aerospaceariety: employed in aerospace like the HD78 (78pin)
Supporting individual requests, we make all regular sizes. We once created a ruggedized DB37 with a metal shell rated for -55°C extreme cold after all, only an OEM manufacturer can manage so sophisticated requirements.
Materials and Workmanship: Where this counts
In industrial environments, cheap plasticshell Dsub connectors would be a catastrophe ready to occur. This is our mandate:
Shell:Zinc alloy with nickel plating (EMI shielding + corrosion resistance)
Contacts: Phosphor bronze with gold plating (contact resistance <20mΩ)
Insulator:insulator made of UL94 V-0 flame retardant substance
A group of our DB15s positioned on offshore oil platforms went through 2,000 hours of salt spray testing with no corrosion as confirmed by Amazon user "RigMaster": "Exceeds IP67 standards." Five humid years free of failure.
What Makes Our D-Sub Connectors Better than the Competition?
Performance Advantage
Military-Grade Shock Resistance:In high vibration environments, dualspring contacts increase connection stability by 40 percent, thereby offering militarylevel shock resistance.
High-Temperature Endurance: HighTemperature Endurenance: Thirdparty tested, fiberglassreinforced shells remain unchanged up to 125°C.
Customization Speed: For a German client, I recently completed a revised DB50 with locking clips + watertight seals in 15 days.
Factory Direct Advantages Over Distributors.
No Middleman Markups:Wholesalers sell DB25 units at 30 percent lower than reseller costs; there no middlemen markups.
Internal R&D Team: Adjust wire sequencing, plate, pin counts—anything you can mention.
Monthly capability of 500K: Quick deliveries within 72 hours
Clear Purchasing Recommendation: Which Dsub Should You Pick?
In case you are:
Device maker: always have DB9/DB15 in stock and follow standards.
Systems Integrator:Choose HD series + personalized labeling with systems integrator to keep mixups at bay.
Client in the energy or military industry: Certified variants must be those using MIL-DTL-24308.
Our recently improved DB19 answer for customers of solar inverters reduced installation time from 3 minutes to 20 seconds, proving that even small connectors affect efficiency.
Need more information ? Get in touch with our engineers personally. Recall: It is not standardization but rather capacity to adjust to your requirements that defines D-sub.
