As a manufacturer specializing in D-Sub connectors, I often get asked: "What's the actual difference between 7W2 and 8W8 D-Sub Power Connectors? Which one should I choose?" Today, I'm going to break down this seemingly simple but frequently confusing question.
Understanding D-Sub Power Connectors
First things first - D-Subminiature Connectors aren't just for data transfer. Specialized types like 7W2 and 8W8 are specifically engineered for power transmission. These Power D-Sub Connectors can handle significantly higher currents than standard DB9, DB15 or DB25 connectors.
"Wait," you might ask, "why do we need different types just for power?" Excellent question! That's exactly what we're going to explore today.
The 7W2 D-Sub Power Connector Explained

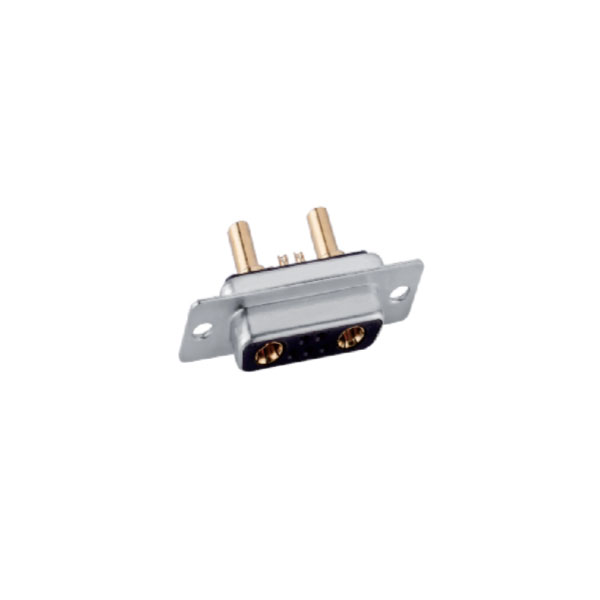

The 7W2, as the name suggests, features 7 pins with 2 dedicated for power. This High Power D-Sub Connector has some distinct characteristics:
-
Two larger-diameter pins specifically designed for power transmission
-
Five remaining pins available for signal transfer or auxiliary functions
-
Compact design ideal for space-constrained applications
"So where does the 7W2 make sense?" I hear you asking. Based on our experience, the 7W2 shines in applications requiring both power delivery and limited signal transmission, like certain industrial control panels or test equipment. Its beauty lies in delivering adequate power without hogging valuable real estate.
The 8W8 D-Sub Power Connector Demystified
Now let's talk about the 8W8. This D-Sub Power Connector utilizes all 8 pins exclusively for power delivery, with each pin capable of handling substantial current. Its key features include:
-
All 8 pins dedicated to power transmission
-
Higher overall current-carrying capacity
-
Ideal for pure power applications without signal requirements
"When should I opt for the 8W8?" That's the million-dollar question. When your equipment needs serious current without requiring signal transmission through the same connector, the 8W8 is your best bet. Think high-power industrial machinery or professional audio systems where the 8W8 delivers robust, reliable high-power connectivity.
7W2 vs 8W8: Key Differences
Let's put these two D-Sub Connectors side by side:
| Feature | 7W2 | 8W8 |
|---|---|---|
| Pin count | 7 (2 power + 5 signal) | 8 (all power) |
| Current capacity | Moderate | High |
| Applications | Mixed power+signal | Pure power |
| Space requirement | More compact | Slightly larger |
| Cost | Typically lower | Typically higher |
"At this point, you might already have some ideas," but hold on - there are more practical considerations.
How to Choose Based on Application?
Selecting the right D-Sub Power Connector isn't just about specs - it affects your entire system's reliability and safety. Here's my professional advice:
When to choose 7W2:
-
Your device needs both power and signal transmission
-
Installation space is limited
-
Power requirements are moderate
-
Cost is a significant factor
When to choose 8W8:
-
Pure power application without signal needs
-
Higher power transmission required
-
Ample installation space available
-
Extreme reliability is critical
"What about environmental factors?" Great question! If you're dealing with dusty, damp, or outdoor conditions, IP67 D-Sub or Waterproof D-Sub connectors become essential considerations, regardless of whether you choose 7W2 or 8W8.
Frequently Asked Questions
Q: Can 7W2 and 8W8 be used interchangeably?
A: While they might physically connect, we strongly advise against it. Their electrical designs differ fundamentally, and mixing them could cause performance issues or even safety hazards.
Q: How should D-Sub male connectors and D-Sub connector female versions be paired?
A: Generally, female connectors (receptacles) should be on the power input side, with male connectors (plugs) on the equipment side to minimize shock risks. However, specific configurations depend on your device design.
Q: Do D-Sub connectors get hot in high-power applications?
A: All connectors generate some heat with high current. Quality High Power D-Sub Connectors use special materials and designs to minimize heating, but proper current matching and heat dissipation remain crucial.
Q: DB9 and 7W2 look similar - are they interchangeable?
A: Absolutely not! Standard DB9 connectors aren't designed for power transmission. Using them for high current is extremely dangerous. Always use purpose-built D-Sub Power Connectors.
Professional Tips and Considerations
After years manufacturing D-Sub connectors, I want to share some practical advice you won't find in textbooks:
-
Don't just look at price: Cheap imitations might match specs on paper but often compromise long-term reliability and safety.
-
Plan for expansion: If you anticipate growing power needs, choose a slightly higher-rated connector now.
-
Wiring matters: Even the best D-Sub Power Connector needs proper gauge wiring and correct installation.
-
Environment matters: For outdoor or harsh conditions, always consider IP67 D-Sub or Waterproof D-Sub connectors.
-
Certifications count: Verify that connectors meet relevant industry safety standards.
Final Thoughts
Choosing between 7W2 and 8W8 D-Sub Power Connectors isn't about finding a "better" option, but the "right fit." As we often tell customers: "Understanding your actual needs leads to the best decisions."
Still unsure? Review your specific application requirements and parameters. If questions remain, we're always here to offer professional advice. Remember, selecting the right connector is the first step toward reliable equipment operation!
One final reminder: Regardless of which D-Sub connector you choose, always source quality products from reputable suppliers. Power connectivity affects not just performance, but most importantly - safety.
