Introduction
Have you ever faced this frustrating scenario—your D-Sub connector loosens due to vibration or accidental tugging, causing signal loss, equipment failure, or even costly downtime?
If so, what you need is a locking D-Sub connector!
As a professional D-Sub connector manufacturer, we understand how critical secure connections are in industrial, medical, and automation applications. Today, let’s explore how to choose the right locking D-Sub connector for your project—ensuring a stable, reliable, and fail-safe connection every time.
1. Why Do You Need a Locking D-Sub Connector?
Imagine your equipment operating in a factory, medical device, or vehicle—if the connector comes loose, it can lead to:
-
Signal loss (e.g., a VGA monitor suddenly going blank)
-
Data transmission failure (e.g., interrupted PLC control signals)
-
Equipment damage (e.g., overheating due to poor contact in high-current applications)
A locking D-Sub connector prevents these issues with screw, latch, or push-pull mechanisms, ensuring long-term stability.
So, how do you choose the best one for your needs?
2. Types of Locking Mechanisms & How to Choose
Different applications require different locking styles. The most common types include:

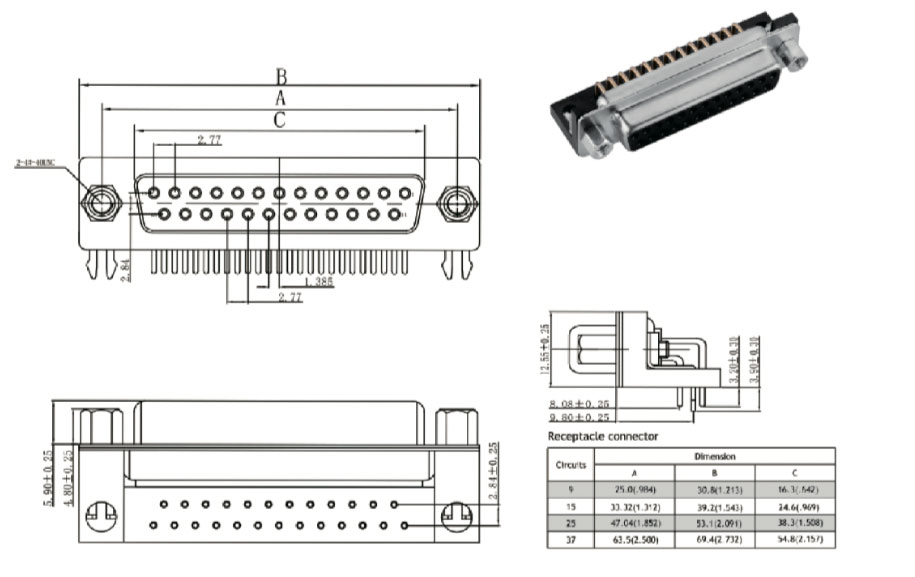

（1）Screw Locking
-
Features: Metal screws provide the strongest hold.
-
Best for: High-vibration environments (industrial machinery, vehicles) where long-term stability is crucial.
-
Our design: Uses nickel-plated brass screws for corrosion resistance and durability.
（2）Latch Locking
-
Features: Plastic latches allow quick installation/removal.
-
Best for: Frequent plugging/unplugging (test equipment, medical devices).
-
Key note: Durability depends on material—we use PBT+GF thermoplastic for long-lasting performance.
（3）Push-Pull Locking
-
Features: No twisting needed—just push to connect, pull to release.
-
Best for: Space-constrained or quick-access systems (aerospace, portable devices).
Which locking type is right for you?
-
Need maximum security? → Screw locking
-
Need quick swaps? → Latch or push-pull locking
3. Beyond Locking: Other Critical Factors
While locking is essential, also consider:
（1）Current & Voltage Ratings
-
Standard (10A-40A, 300V): Industrial controls, instrumentation.
-
High-current (10A-40A, 500V): Power systems, motor controls.
-
Waterproof (IP67, 5A, 300V): Outdoor, marine, or humid environments.
（2）Environmental Resistance
-
Temperature range: Our connectors operate reliably from -25°C to +85°C.
-
IP67 waterproofing: Fluororubber seals block dust/water immersion.
（3）Electrical Performance
-
Low contact resistance (≤10mΩ): Minimizes signal loss.
-
High insulation resistance (≥1000MΩ): Prevents leakage currents.
4. FAQ (Addressing Long-Tail Keywords)
Q1: Should I use a 15-pin or 9-pin D-Sub connector?
-
DB15: Common for VGA video, industrial comms (RS-422/485).
-
DB9: Used in serial ports (RS-232).
-
Need more signal lines? DB15 is likely the better choice.
Q2: Are waterproof D-Sub connectors truly moisture-proof?
Yes! Our IP67-rated series uses fluororubber sealing—resisting temporary submersion for outdoor/harsh environments.
Q3: Can I get custom-colored connectors?
Absolutely! We offer black, white, blue as standards, plus custom colors for easy equipment identification.
5. Conclusion: Partner with Experts for Reliable Connections
Choosing a D-Sub connector isn’t just about picking a "port"—it’s about reliability, durability, and safety. As a specialized manufacturer, we provide standard and custom solutions to keep your equipment running smoothly.
Tired of loose connections? Switch to locking D-Sub connectors for worry-free performance!
Need a tailored solution? Contact us—we don’t just sell connectors; we deliver dependable connectivity.
